AC2010,AC3010,AC4010,AC5010,
二聯件,價格
|
一、圖形符號：
二、技術參數
| 保證耐壓力 |
1.5MPa |
| *高使用壓力 |
1.0MPa |
| 環境及流體溫度 |
5～60°C |
| 過濾度 |
25um |
| 建議用油 |
透平1號油ISOVG32 |
| 容器材料 |
聚碳酸脂 |
| 防護罩 |
AC2010（無）/AC3010-4010（有）
|
| 調壓范圍 |
0.05-0.85MPa |
| 閥型 |
帶溢流型 |
*還有5，50um可供選擇
|
 |
|
型號
|
規格
|
配件
|
|
組件
|
額定流量
(l/min)
|
接管口徑
G
|
壓力表口徑
G
|
重量
(kg)
|
托架
(2個)
|
壓力表
|
|
過濾減壓閥
|
|
|
AC2010-01
|
AW2000
|
AL2000
|
500
|
1/8"
|
1/8"
|
0.66
|
Y20T
|
G36-10-01
|
|
AC2010-02
|
AW2000
|
AL2000
|
500
|
1/4"
|
1/8"
|
Y20T
|
|
AC3010-02
|
AW3000
|
AL3000
|
1700
|
1/4"
|
1/8"
|
0.98
|
Y30T
|
|
AC3010-03
|
AW3000
|
AL3000
|
1700
|
3/8"
|
1/8"
|
Y30T
|
|
AC4010-03
|
AW4000
|
AL4000
|
3000
|
3/8"
|
1/4"
|
1.93
|
Y30T
|
|
AC4010-04
|
AW4000
|
AL4000
|
3000
|
1/2"
|
1/4"
|
Y30T
|
|
AC4010-06
|
AW4000-06
|
AL4000-06
|
3000
|
3/4"
|
1/4"
|
1.99
|
Y40T
|
G46-10-02
|
|
AC5010-06
|
AW5000
|
AL5000
|
4000
|
3/4"
|
1/4"
|
3.20
|
Y60T
|
|
AC5010-10
|
AW5000
|
AL5000
|
4000
|
1"
|
1/4"
|
Y60T
|
|
*供應壓力為0.7MPa 設定壓力為0.5MPa 的情況下。
*流量特征及壓力特征與三聯件相同。

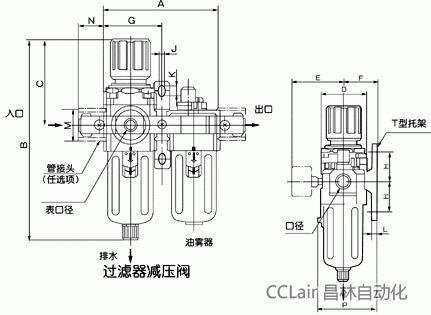

三、外形及安裝尺寸：
AC2010
AC3010～5010
|
型號
|
口徑G
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
M
|
N
|
P
|
|
AC2010
|
1/8"～1/4"
|
90
|
164.5
|
78
|
40
|
56.8
|
30
|
45
|
24
|
5.5
|
8.5
|
5
|
22
|
23
|
50
|
|
AC3010
|
1/4"～3/8"
|
117
|
211
|
92.5
|
53
|
60.8
|
41
|
58.5
|
35
|
7
|
11
|
7
|
34.2
|
26
|
70.5
|
|
AC4010
|
3/8"～1/2"
|
154
|
262
|
112
|
70
|
70.5
|
50
|
77
|
40
|
9
|
13
|
7
|
42.2
|
33
|
88
|
|
AC4010－06
|
3/4"
|
164
|
267
|
114
|
70
|
70.5
|
50
|
82
|
40
|
9
|
13
|
7
|
46.2
|
36
|
88
|
|
AC5010
|
3/4"～1"
|
195
|
338
|
116
|
90
|
75.5
|
69.8
|
97.5
|
50
|
12
|
16
|
10.5
|
55.2
|
40
|
115
|
|
